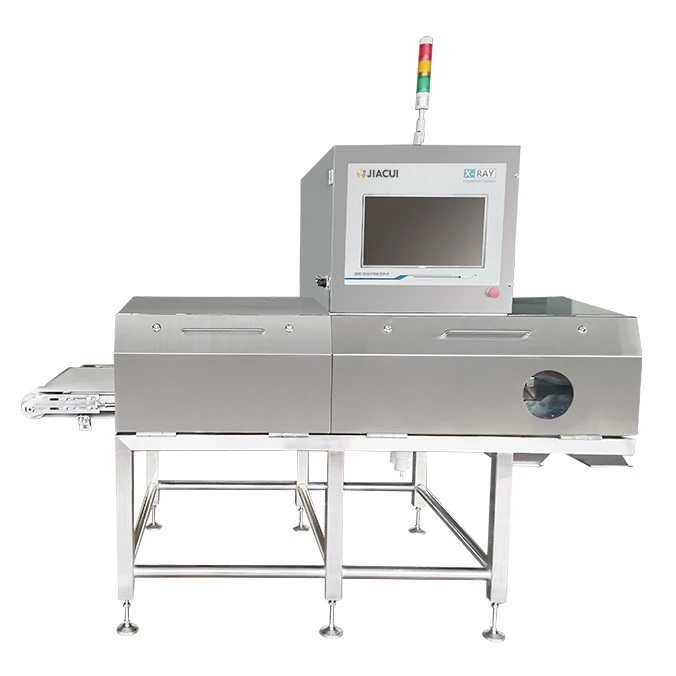

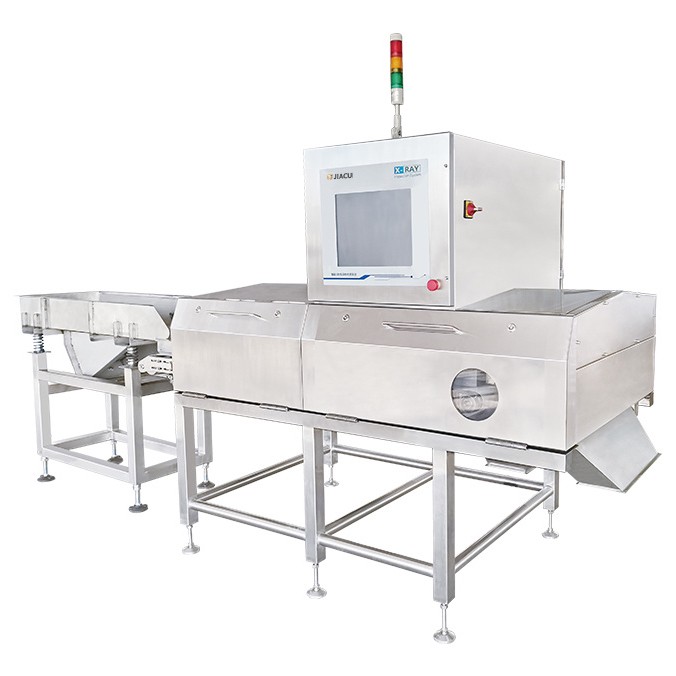

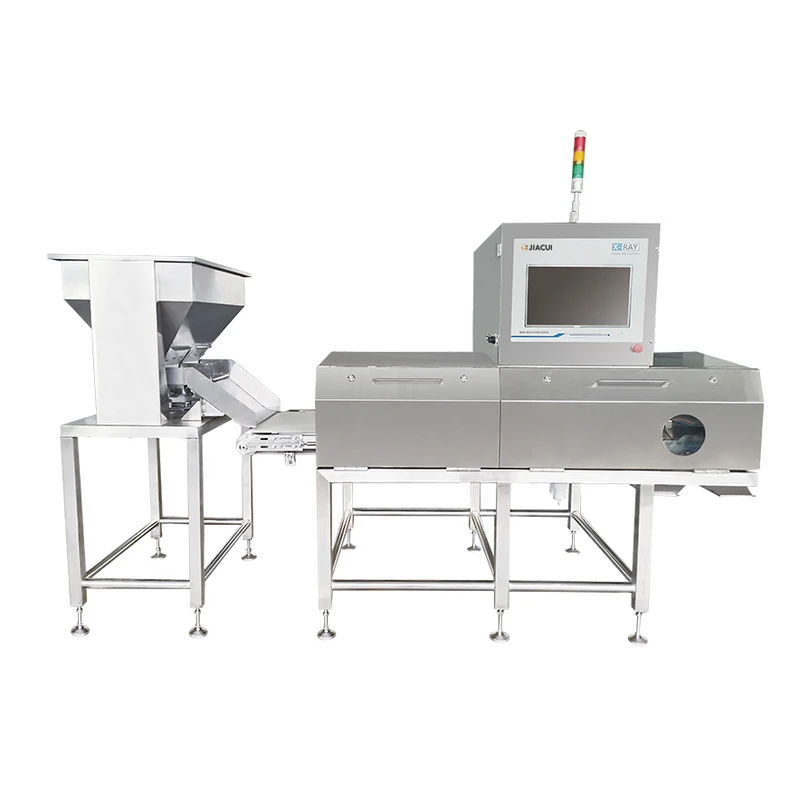

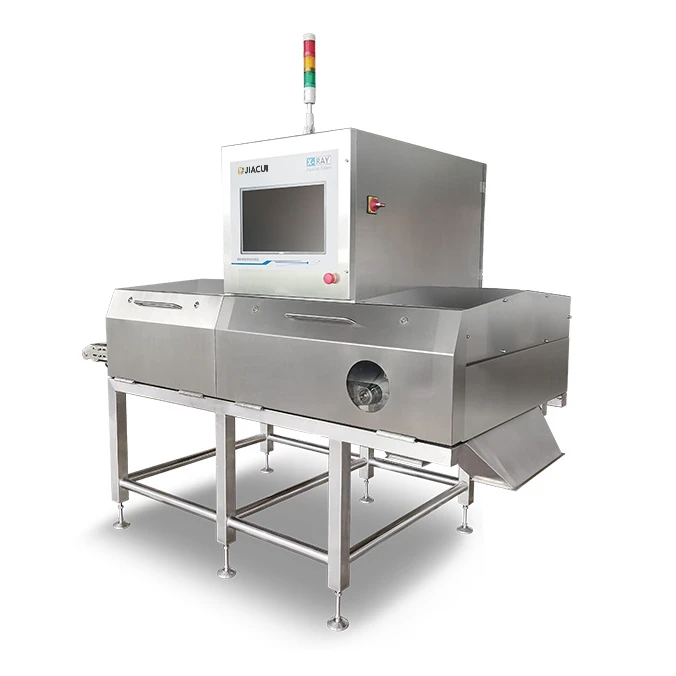

X-Ray Intelligent Sorting Machine CS-XCA40

Name: X-Ray Intelligent Sorting Machine CS-XCA40
Brand: JiaCui
Price: 1 USD
Availability: InStock
Rating: 5 (11 reviews)

Adotando fontes de radiação de alta potência e baixo consumo de energia líderes na indústria

Inspeção de raio-X de alta precisão permite a classificação instantânea, deixando sem esconderijo para defeitos e objetos estranhos

Movido por algoritmos de IA ultra-rápidos, tomada de decisões em nível de milissegundo, dobro da produtividade e metade das perdas

Chute de precisão de nível de milissegundo, defendendo a linha de segurança inferior de alimentos enlatados

Model:

CS-XCA40

X-Ray Intelligent Sorting Machine CS-XCA40

Functions and Features

Sorting Range

Product Parameters

Improve Product Quality, Reduce Production Costs

Contact our expert team now to get exclusive solutions and preferential quotes

Free Consultation

Sorting Range

Bottled canned goods

Pickled vegetables

Milk powder

Bottled and canned other products

Photos of bottle mouth and bottom inspection

Product Parameters

Product Model	CS-XCA40
X-ray Output	Max 55kV/8.0mA adjustable (maximum 350W)
No-load sensitivity(mm)	Stainless steel ball ≥φ0.3, stainless steel wire ≥φ0.2*2, glass ball ≥φ1.0, ceramic ball ≥φ1.0
Detection size (mm)	Width≤400mm,height≤100mm
Conveyor belt width (mm)	400mm
Conveyor belt speed (m/min)	60-120m/min
Rejection device	Push plate/air blow, etc. are optional
Loading capacity(kg)	10kg
Power supply	Single-phase AC220±10%V,50/60Hz,2.5kVA
Gas source requirements	0.6-0.8MPa
Gas consumption	≤2000L/min
Protection level	IP66 in the product channel, IP65 in other areas
Usage Environment	Ambient temperature -10~40℃; relative humidity 30-90%, no condensation
Net weight(kg)	600kg
Main material	SUS304
Radiation safety	<1uSv/h
Conveyor belt material	POM
Host size
