Author: JIACUI Technical Engineering Team Category: Optical Sorting Technology & Applications
Introduction: Why Chute Sorters Fail with Complex Materials

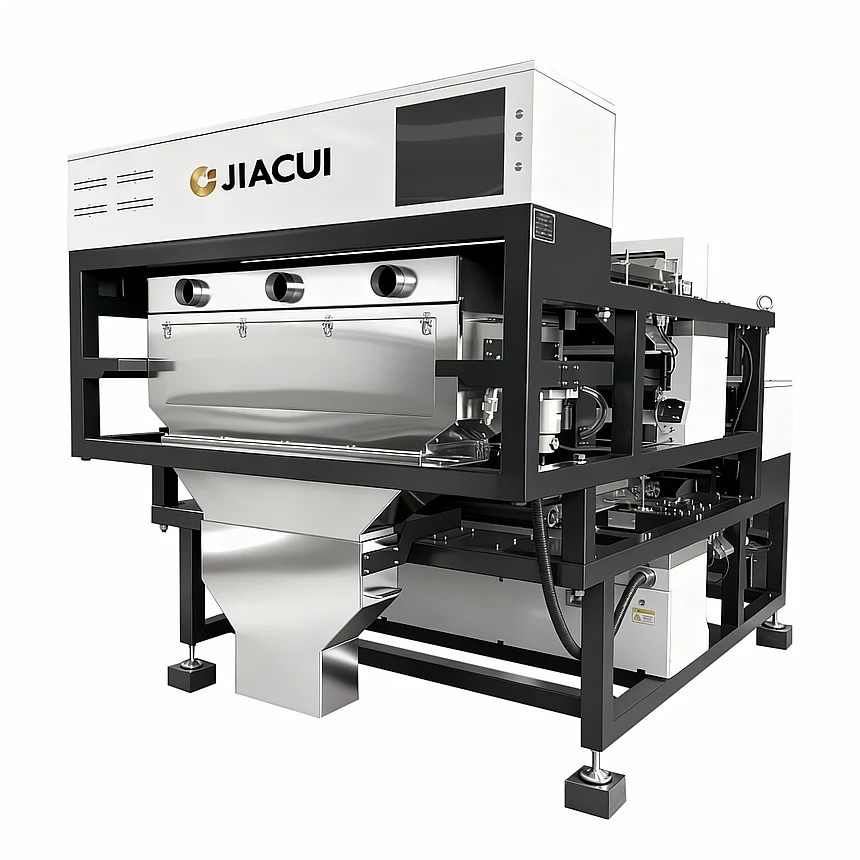

In modern optical sorting, chute-type sorters often reach their physical limits when handling fragile, irregular, or high-friction raw materials. High vertical drop velocities in chute sorters lead to severe product breakage for delicate crops (such as in-shell cashews or dehydrated garlic) and cause unstable bouncing trajectories for irregular industrial materials (like PET flakes and mineral ores). To address these operational bottlenecks, JIACUI engineered the CS-LA1200 Belt-Type Color Sorter. By delivering flat, horizontal material conveyance coupled with advanced multi-camera vision, crawler sorters have become the industry benchmark for high-throughput, low-damage optical sorting.
Key Technical Specs: JIACUI CS-LA1200 at a Glance
Engineered for continuous heavy-duty industrial environments, the CS-LA1200 integrates premium global components (chips and electrical architectures from the US, Japan, and leading manufacturers) to ensure continuous operation with a low failure rate.
| Technical Parameter | Specification Value | ||
|---|---|---|---|
| Model | JIACUI CS-LA1200 | ||
| Structure & Belt Width | Single Deck Belt / 1200 mm Track Width | ||
| Footprint / Area | Compact 4.9 m² design | ||
| Optical Vision System | 8 High-Resolution Cameras | ||
| Control Interface | 15-inch Industrial-Grade Touchscreen | ||
| Sorting Accuracy | ≥ 99% | ||
| Carryover Ratio (Bad:Good) | ≥ 20:1 (Minimal loss of good product) | ||
| Ejection Hardware | 256 High-Frequency Air Holes | ||
| Power & Air Consumption | 6 kW/h | Air Pressure: 0.6–0.8 MPa | Air Source: ≥4 m³/min |
| Dimensions & Weight | 2430 × 2000 × 1198 mm | 1150 kg |
Material-Specific Applications & Capacity Metrics
The extra-wide 1200mm conveyor belt significantly increases material distribution surface, boosting throughput capacity by over 50% compared to standard width sorting units.
+---------------------------------------------------------------------------------+
| JIACUI CS-LA1200 Sorting Performance |
+------------------------------+--------------------+-----------------------------+
| Material Size Category | Processing Capacity| Primary Target Material |
+------------------------------+--------------------+-----------------------------+
| Small Particles (5–15 mm) | 5 – 7 Tons / Hour | PET Flakes, Beans, Seeds | | Medium Particles (15–30 mm) | 6 – 10 Tons / Hour | In-shell Peanuts, Cashews | | Large Particles (30–50 mm) | 8 – 12 Tons / Hour | Quartz Ores, Dehydrated Garlic|
+------------------------------+--------------------+-----------------------------+
1. Fragile Agricultural Commodities (Cashews, Peanuts, Dehydrated Vegetables)
- The Challenge: High impact speed in conventional chute sorters causes kernel cracking, reducing final market grade value.
- The JIACUI Solution: The flat belt ensures static material positioning during transport. The 8-camera array detects subtle discolored spots, mold, insect bites, and shell fragments.
- Impact: Near-zero breakage rate during sorting, delivering a ≥99% purity rate while maintaining ≥20:1 carryover precision.
2. Plastics & Industrial Recycling (PET Flakes, WEEE Shredded Plastics)
- The Challenge: Thin plastic flakes easily overlap and bounce unpredictably on inclined chutes, leading to false ejector strikes and high good-material loss.
- The JIACUI Solution: High-speed belt stabilization ensures flat material presentation. The 256 precision air ejectors respond instantaneously to pinpoint discolored flakes or non-PET polymer impurities.
- Throughput: Reliable 5–7 T/H processing capacity on 5–15mm flakes, ideal for large-scale recycling lines.
3. Mineral & Heavy-Duty Sorting (Quartz, Rock Salt, Ores)
- The Challenge: Heavy abrasive rocks rapidly wear down chute glass and structure, causing frequent downtime and erratic sorting.
- The JIACUI Solution: Reinforced frame structure with an industrial-grade crawler belt handles high-impact raw minerals up to 50mm.
- Throughput: Reaches 8–12 T/H capacity on coarse minerals, drastically reducing manual hand-picking labor costs.
EEAT Engineering Insight: Why the Belt Architecture Matters
"In high-precision optical sorting, signal-to-noise ratio starts with physical material stability. If a particle is bouncing or rolling when passing the camera's optical line of sight, even the highest resolution sensor will capture motion blur, leading to misclassification. Horizontal belt conveyance locks the particle in place, allowing full-spectrum vision sensors to inspect 100% of the surface area." — Senior Application Engineer, JIACUI Machinery
Operational Efficiency & ROI Analysis
1. Reduced Product Waste: A Carryover Ratio of ≥20:1 means that for every 20 rejected defect pieces, no more than 1 good piece is mistakenly ejected. 2. User-Friendly Operation: The newly upgraded 15-inch industrial-grade touchscreen allows operators to switch between pre-stored sorting profiles (e.g., switching from cashews to quartz) within seconds. 3. Low Total Cost of Ownership (TCO): Consuming only 6 kW/h, built with robust global electronics, and occupying just 4.9 m², the CS-LA1200 yields a quick payback period for processing plants.
Conclusion: Upgrade Your Sorting Line with JIACUI
Whether you need to protect fragile food products or scale up plastic recycling output, the JIACUI CS-LA1200 Belt Color Sorter balances high throughput with pinpoint accuracy.
- Interested in testing your material? Contact JIACUI's engineering team today for a free optical sorting trial and customized ROI report.
