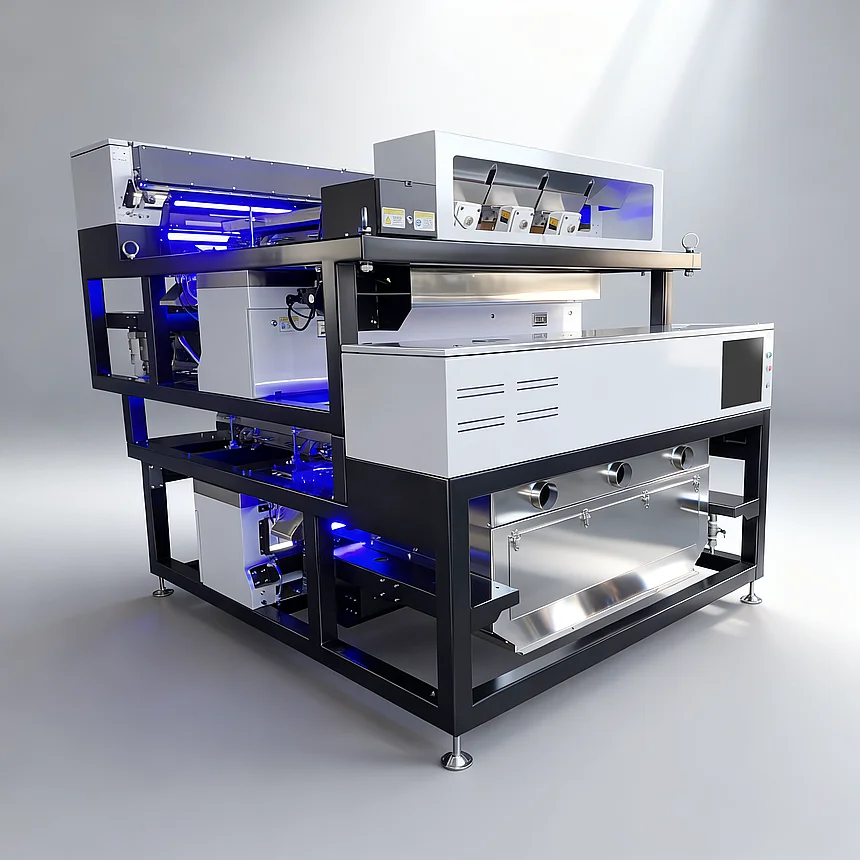

Factory Engineering Guide: Integrating a Crawler Color Sorter into Your Production Line

Author: JIACUI Technical Engineering Team Category: Machinery Installation & Factory Integration

Introduction: Optimizing Plant Layout for Optical Sorting

Integrating an optical sorter into an existing bulk processing facility requires careful planning around material flow, air supply, and structural stability. While traditional chute units require significant vertical elevation, a Crawler Color Sorter utilizes a horizontal belt configuration that minimizes drop height and integrates seamlessly into lower-profile conveyor networks. This technical guide provides step-by-step instructions for factory engineers installing the JIACUI CS-LA1200 Belt-Type Color Sorter, ensuring maximum operational efficiency, low maintenance downtime, and optimal sorting accuracy.

Technical Specifications: JIACUI CS-LA1200 Crawler Color Sorter

Designed for high-throughput industrial environments, the CS-LA1200 Belt Optical Sorting Machine features robust components sourced from global leaders across the US, Japan, and China.

Component / Metric	Technical Specification	Engineering Advantage
Belt Architecture	Single-Layer 1200mm Belt Width	Boosts throughput capacity by over 50%
Occupied Floor Area	4.9 m² Compact Footprint	Fits tight plant layouts with minimal structural changes
Vision System	8 High-Speed Industrial Cameras	Provides multi-angle 360° defect inspection
Target Accuracy	≥ 99% Purity Rate	Eliminates manual hand-sorting bottlenecks
Carryover Ratio	≥ 20:1 (Bad to Good product)	Prevents loss of premium good material
Ejection Valves	256 High-Frequency Air Nozzles	Delivers fast, targeted defect rejection
Air Consumption	≥ 4 m³/min at 0.6–0.8 MPa pressure	Stable pneumatic strike force across all channels
Power Rating	6 kW/h (220V/50Hz)	Energy-efficient industrial drive system
User Interface	15-inch Industrial Touchscreen	Fast preset selection and real-time diagnostics

3 Critical Steps for Installing Your Belt-Type Color Sorter

+-----------------------------------------------------------------------------------+

| JIACUI CS-LA1200 INSTALLATION ARCHITECTURE FLOW |

+-----------------------------------------------------------------------------------+
|  [ Infeed Conveyor ] ---> [ 1200mm Crawler Belt ] ---> [ 8-Camera Optical Zone ]  |

| | | | (256 Ejector Air Holes) | | v |

|  [ Good Material Outlet ] <------------------------ [ Defect Rejection Hopper ]   |
+-----------------------------------------------------------------------------------+

1. Foundation & Floor Space Preparation

A major benefit of the JIACUI CS-LA1200 Crawler Color Sorter is its compact physical footprint of just 4.9 m² (dimensions: 2430 × 2000 × 1198 mm, weight: 1150 kg).

Leveling: Ensure the installation floor is reinforced and perfectly level to prevent uneven belt tracking across the 1200mm track width.
Vibration Isolation: Install the machine away from heavy primary crushers or large hammer mills to prevent physical vibration from interfering with the 8 high-resolution cameras.

2. Pneumatic & Power Line Setup

To maintain a high Carryover Ratio (≥20:1) and prevent accurate rejection loss, your pneumatic infrastructure must deliver clean, dry air.

Air Compressor Matching: Connect an air compressor capable of delivering ≥4 m³/min airflow at a stable working pressure of 0.6–0.8 MPa.
Electrical System: Wire the unit into a stable 220V/50Hz power line. JIACUI’s updated electrical architecture protects internal components against voltage surges.

3. Material Infeed & Discharge Alignment

A Belt Optical Sorting Machine relies on a uniform, single-layer material flow to achieve its ≥99% sorting accuracy.

Vibratory Feeder Alignment: Position the upstream vibratory feeder directly over the belt receiving area to ensure continuous material spreading.
Throughput Tuning: Adjust feeding rates based on particle size:
5–15mm (PET Flakes/Seeds): 5 – 7 Tons / Hour
15–30mm (Peanuts/Cashews): 6 – 10 Tons / Hour
30–50mm (Quartz/Ores/Garlic): 8 – 12 Tons / Hour

EEAT Engineering Insight: Maximizing Hardware Lifespan

"In belt-type sorting equipment, the longevity of pneumatic ejectors depends almost entirely on compressed air quality. Running a high-capacity Crawler Color Sorter with unfiltered compressed air allows moisture and oil vapor into the ejection manifold. Installing an integrated refrigerated air dryer and multi-stage oil filters before the machine inlet will double the operational lifespan of your solenoid ejector valves." — Chief Technical Officer, JIACUI Machinery

Conclusion: Upgrade Your Line with JIACUI

Proper installation of a Belt-Type Color Sorter ensures smooth material handling, low failure rates, and immediate return on investment for your processing facility. Looking for customized line layout drawings or material sorting tests for your facility? Contact the JIACUI technical service team today.
