1. Executive Summary: Elevating Colombian Exports on the Global Stage

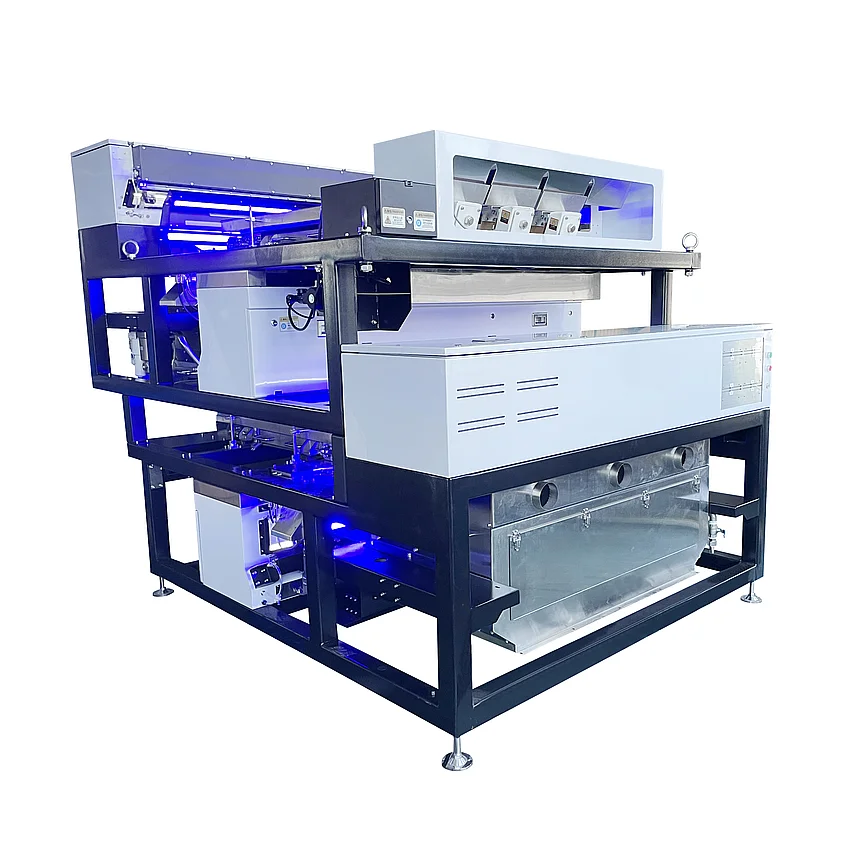

Colombia is world-renowned for its premium agricultural production, defined by the rich volcanic soils of the Andes mountains, ideal microclimates, and meticulous harvesting traditions. From the world’s finest High-Altitude Specialty Arabica Coffee and Fine-Flavor Criollo & Trinitario Cocoa to rapidly growing export commodities like Physalis (Cape Gooseberry/Uchuva), Macadamia, Cashews, and Sacha Inchi, Colombian processors face a common imperative: delivering pristine quality while minimizing mechanical damage to fragile, high-value harvests. Traditional chute-type optical sorters rely on steep drop angles and gravity-fed chutes. For Colombia’s delicate export goods, this impact often causes kernel chipping, parchment cracking, and bruising—directly undermining export values set by international trade standards. To solve these challenges, JIACUI presents the CS-LA1200D Crawler-Type Double-Deck Color Sorter. Engineered with a dual-layer horizontal belt conveyor (1200mm track width per layer), anti-crushing dynamics, 16 high-resolution optical cameras, and an intuitive 15-inch industrial control screen, the CS-LA1200D empowers Colombian processing mills (trilladoras and agro-industrial plants) to achieve ≥ 99% sorting purity, ≥ 20:1 carryover ratio, and simultaneous 3-grade sorting in a single operational pass.
2. Specialized Applications across Colombia’s Key Agricultural Sectors
Unlike gravity-fed chute sorters where commodities bounce and roll down sloped metal tracks, a crawler (belt-type) sorter maintains absolute material stability on a high-speed horizontal track. This design addresses the specific quality control requirements across Colombia's key agricultural regions:
[ Raw Harvest / Raw Feed ]
│
▼
┌──────────────────────────────────────┐
│ Upper Deck Crawler Belt │ ──► [ Primary Optical Scanning (16 Cameras) ]
└──────────────────────────────────────┘
│ │
▼ ▼
[ Grade 1: Export Grade A ] [ Secondary / Rejected Stream ]
│
▼
┌──────────────────────────────────────┐
│ Lower Deck Crawler Belt │ ──► [ Secondary Re-Sorting ]
└──────────────────────────────────────┘
│ │
▼ ▼
[ Grade 2: Grade B ] [ Grade 3: Discards ]
A. Specialty & Micro-Lot Coffee Processing (Eje Cafetero, Huila, Nariño, Antioquia)
- The Challenge: Colombia’s reputation hinges on high specialty scores (SCA scores 85+). Defective beans—such as Broca (coffee berry borer damage), sour beans (grano negro/vinagrillo), parchment remnants, or crushed beans—drastically lower auction values. Furthermore, traditional chutes can crack delicate parchment or chip dry green beans during high-speed impact.
- The CS-LA1200D Advantage:
- Zero-Impact Conveyance: Green coffee beans lie flat on the 1200mm rubber belt, preventing rolling and ensuring precise camera inspection.
- Simultaneous 3-Grade Separation: The double-deck mechanism isolates Specialty Export (Grade A), Standard/Pasilla Commercial (Grade B), and Defects/Foreign Objects (Grade C) in a single continuous pass.
B. Fine-Flavor Cocoa & Fermented Beans (Santander, Arauca, Huila)
- The Challenge: Colombia's fine or flavor cocoa beans are prone to shell fracturing during optical sorting. Damaged bean shells expose fat-rich nibs to air oxidation, causing rancidity during transatlantic shipment to European or North American chocolate makers.
- The CS-LA1200D Advantage: The anti-crushing crawler drive moves fragile fermented beans gently beneath the 16 optical cameras. High-precision pneumatic ejectors blast away moldy, unfermented (slaty), flat, or insect-damaged beans without cracking intact outer shells.
C. Exotic Fruits, Nuts & Superfoods: Uchuva, Macadamia, Cashew, & Sacha Inchi
- The Challenge: High-value niche exports—such as dehydrated uchuva (Goldenberries), shelled macadamias, cashew nuts (from Vichada), and Sacha Inchi seeds—are fragile, soft, or oil-rich. Friction inside chute sorters causes oil buildup, requiring frequent cleaning shutdowns while damaging tender produce.
- The CS-LA1200D Advantage: The flat belt surface eliminates sliding friction, preventing oil residue accumulation. The high-speed targeted air valve array removes discoloration, seed coat fragments, and shriveled fruit with micro-precision.
3. Core Architectural Innovations & Engineering Features
1. Dual-Deck Architecture for Maximum Yield & 3-Grade Sorting
In standard single-deck sorting, processors must choose between losing good material in reject bins or under-sorting defects to keep yields high. The CS-LA1200D eliminates this trade-off:
- Top Deck: Processes the main incoming harvest stream at high speed.
- Bottom Deck: Automatically catches the rejected or intermediate fraction from the top deck and executes a secondary re-sort pass.
- Result: Simultaneous isolation of three distinct output grades—Premium Export, Domestic Commercial Grade, and Total Waste Discard—without installing secondary sorting machinery or complex bucket elevators.
2. High-Speed Belt Dynamics & Gentle Handling Structural Design
By replacing inclined metal chutes with twin high-speed vulcanized crawler belts (120 cm × 2), materials travel at a steady speed past the inspection zone. The anti-crushing discharge chutes cushion the final drop into collection hoppers, reducing breakage by up to 95% compared to gravity-chute sorters.
3. High-Density Optical Inspection Array (16 Cameras + Target Positioning)
- 16 High-Speed Cameras: Provide continuous visual monitoring across the full 1200mm belt width, catching subtle shade variations, insect pinholes, mold spots, and foreign debris (stones, sticks, metals).
- Targeted Air Ejection (512 Air Holes): A fast-acting pneumatic manifold with 512 independent ejectors delivers focused air pulses directly to defective targets, maintaining an industry-leading bad-to-good carryover ratio of ≥ 20:1.
4. Human-Centric HMI with Pre-Loaded Colombian Commodity Profiles
Featuring a robust 15-inch industrial touch screen, the onboard control system includes preset calibration profiles for Colombian export commodities (Coffee, Cocoa, Macadamia, Beans, Superfoods). Operators can switch processing modes with a few touches, adjust optical sensitivity thresholds, and view live real-time processing statistics.
4. Technical Specifications Matrix
| Feature / Parameter | Machine Specification | Operational Advantage for Colombian Processing Facilities |
|---|---|---|
| Model Code | CS-LA1200D | Double-Deck Belt Optical Sorter |
| Structure Type | Crawler / Belt Drive | Zero-bounce conveyance for fragile beans, nuts, and dried fruit |
| Sorting Layers | Double Layer | Dual-deck system delivering simultaneous 3-grade classification |
| Track Width | 120cm × 2 (1200mm) | Wide processing channel delivering high-volume processing |
| Processing Capacity | 5–15mm: 5–7 T/H 15–30mm: 6–10 T/H 30–50mm: 8–12 T/H | High throughput tailored for dry coffee mills (trilladoras) and grain depots |
| Sorting Accuracy | ≥ 99% | Consistently achieves demanding international export purity standards |
| Carryover Ratio (Bad:Good) | ≥ 20:1 | Prevents loss of marketable products in defect channels |
| Camera Configuration | 16 Industrial Cameras | High-resolution optical detection of subtle color and surface defects |
| User Interface / HMI | 15-inch Industrial Touchscreen | Fast profile switching between coffee, cocoa, and specialty crops |
| Ejector System | 512 Precision Air Nozzles | Targeted micro-pulses for accurate reject ejection |
| Power Consumption | 9 kW/h | Efficient power usage across long operational shifts |
| Power Supply Requirements | 220V / 50Hz (or 60Hz compatible) | Integrates with local plant power configurations |
| Operating Air Pressure | 0.6–0.8 MPa | Industrial compressed air standard |
| Air Consumption Volume | ≥ 8 m^3/min | Reliable pneumatic support for high-defect sorting runs |
| Physical Dimensions | 2810 × 2000 × 2088 mm | Compact footprint (5.6 m^2) ideal for plant expansions |
| Machine Net Weight | 2300 kg | Heavy-duty steel frame engineered for continuous operation |
5. Economic ROI & Strategic Value for Colombian Agro-Exporters
1. Floor Space Efficiency (5.6 m^2 Footprint): By integrating primary sorting and secondary re-sorting into one 2810 × 2000 mm frame, processing plants save capital expenditure on extra conveyors, bucket elevators, and floor space. 2. Value Retention Through Anti-Breakage: Preventing kernel splitting in specialty coffee (1.5–3% typical chute breakage) or cocoa shell fracturing helps preserve full premium pricing for export shipments. 3. Optimized Operational Costs (9 kW/h Power Draw): Energy-efficient drives deliver processing rates up to 12 T/H on large crops while keeping power consumption manageable. 4. Air Consumption Efficiency: With 512 fast-acting air nozzles synchronized to 16 optical cameras, air pulses are tightly controlled to reduce overall compressor load (≥ 8 m^3/min) while maintaining a ≥ 20:1 carryover ratio.
6. Conclusion
The JIACUI CS-LA1200D Double-Deck Crawler Color Sorter is designed to meet the quality control requirements of Colombia’s agricultural sector. Combining gentle belt transportation, a wide 1200mm track, 16 optical cameras, and double-deck re-sorting capabilities, the CS-LA1200D achieves ≥ 99% sorting purity without damaging delicate commodities. Whether processing specialty Arabica coffee in Huila, fine cocoa in Santander, or exotic superfoods for overseas trade, the CS-LA1200D provides a reliable, high-throughput solution for agricultural export processing.
