Optimizing South American Agricultural & Mineral Processing: Technical Deep-Dive into the JIACUI CS-LA1200D Double-Deck Crawler Color Sorter

1. Executive Summary & South American Market Context

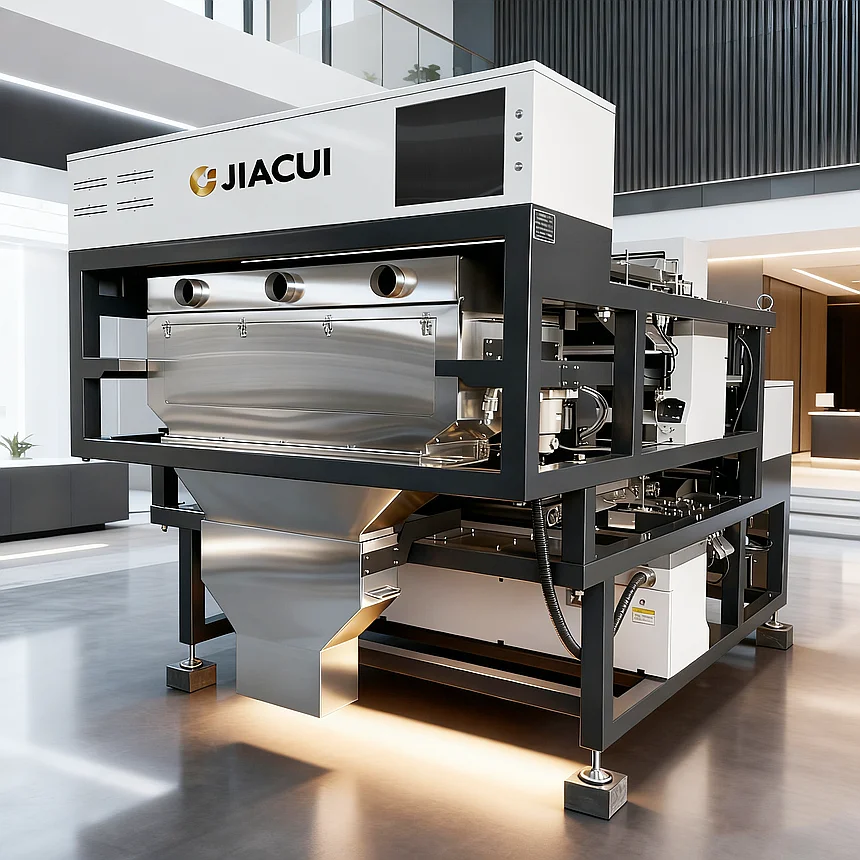

South America represents one of the most dynamic agricultural and industrial processing hubs globally. From the massive soybean and specialty coffee plantations of Brazil and Colombia to the rich quartz, mineral, and nut processing facilities in Peru and Chile, high-throughput bulk sorting is paramount. Traditional chute-type optical sorters often struggle with fragile, sticky, irregularly shaped, or heavy materials due to high drop-impact damage, inconsistent feed speeds, and limited multi-grade sorting capabilities. To address these challenges, JIACUI has engineered the CS-LA1200D Crawler-Type Double-Deck Color Sorter. Engineered with a dual-layer belt system and a 1200mm track width (120 cm × 2), this machine provides stable material transport, anti-crushing protection, and simultaneous 3-grade sorting. By incorporating advanced optical hardware—including 16 high-resolution industrial cameras and a 15-inch industrial touch interface—the CS-LA1200D offers an ideal solution for South American exporters seeking high purity (≥ 99%), minimal carryover (≥ 20:1), and high throughput (up to 12 T/H).

2. Key South American Application Scenarios

Unlike chute-type sorters, where materials slide down inclined chutes under gravity and can bounce, roll, or break, a crawler (belt-type) sorter carries materials smoothly on a horizontal belt. This makes the CS-LA1200D specifically tailored for South America's major export commodities:

A. Specialty Coffee Beans & Raw Cocoa (Colombia, Brazil, Ecuador, Peru)

• The Challenge: Arabica specialty beans, fermented cocoa beans, and dry parchment coffee are prone to chipping and abrasion when dropped from high chutes. Inconsistent sliding speeds lead to misdirected air blasts and false rejects.
• The CS-LA1200D Solution: The horizontal crawler belt keeps beans stationary during optical scanning, eliminating rolling and bounce. The double-deck mechanism enables simultaneous separation of Accepts (Grade A), Secondary Quality (Grade B), and Rejects/Foreign Matter in a single pass.

B. Nuts & Seeds: Brazil Nuts, Cashews, Peanuts, & Macadamia (Brazil, Bolivia)

• The Challenge: Shelled Brazil nuts and cashews are oil-rich, fragile, and irregularly shaped. Chute friction causes oil residue buildup and material breakage, reducing the commercial value of whole kernels.
• The CS-LA1200D Solution: Anti-crushing belt dynamics prevent kernel breakage. High-speed spray valves precisely target discolored kernels, insect-damaged nuts, and shell fragments without shattering delicate whole nuts.

C. Grains & Pulses: Soybeans, Black Beans, Kidney Beans, & Quinoa (Argentina, Brazil, Peru, Bolivia)

• The Challenge: Bulk grain handling requires high processing capacities (5–12 T/H) while removing subtle color variations, toxic weed seeds, soil clods, and stone particles.
• The CS-LA1200D Solution: High-capacity 1200mm track width accommodates heavy bulk streams, while the dual-deck system allows re-sorting of carryover to maximize yield and profitability.

D. Industrial Minerals & Plastics: Quartz, Salt, & Recycled PET Flakes (Chile, Peru, Brazil)

• The Challenge: Heavy mineral rocks or uneven plastic flakes cause severe wear and tear on traditional chutes and require high-impact air ejection.
• The CS-LA1200D Solution: Heavy-duty, high-speed crawler tracks easily handle dense materials, allowing accurate optical classification for silica sand, quartz granules, and recycled polymers.

3. Core Architecture & Technological Innovations

               [ Upper Feed Hopper ]
                         │
                         ▼
           ┌──────────────────────────┐
           │   Upper Crawler Deck     │ ──► [ Primary Optical Inspection (16 Cameras) ]
           └──────────────────────────┘
             │                       │
             ▼                       ▼
      [ Grade 1: Accepts ]    [ Rejected / Intermediate Stream ]
                                     │
                                     ▼
                       ┌──────────────────────────┐
                       │   Lower Crawler Deck     │ ──► [ Secondary Re-Sorting ]
                       └──────────────────────────┘
                         │                       │
                         ▼                       ▼
                  [ Grade 2: Middlings ]   [ Grade 3: Discards ]

1. Double-Layer Crawler Structure & 3-Grade Sorting

The primary bottleneck in single-pass sorting is the trade-off between purity and yield. The CS-LA1200D resolves this through its double-deck architecture.

• Top Deck: Conducts primary sorting on raw feed streams.
• Bottom Deck: Instantly accepts rejects or secondary streams from the upper layer for precise re-sorting.

This allows processing facilities to classify materials into three distinct grades simultaneously (e.g., Premium Accept, Commercial Grade, and Foreign Matter Discard), eliminating the need for additional conveyor lines or secondary sorter units.

2. High-Speed Belt & Anti-Crushing Engineering

Chute sorters subject delicate materials to high terminal velocity impacts. The CS-LA1200D utilizes high-speed industrial belt tracks that convey materials horizontally past the camera inspection zone at a controlled speed. Soft transitions at discharge points minimize mechanical shock, dramatically reducing breakage rates for fragile commodities like shelled Brazil nuts, macadamias, and dehydrated agricultural produce.

3. Advanced Optical Sensing & Target Positioning System

• 16 High-Precision Cameras: Equipped with 16 industrial-grade optical camera sensors, the CS-LA1200D delivers comprehensive spatial coverage across the entire 1200mm belt width.
• Targeted Positioning & Ejection: The high-speed algorithm calculates the precise center of mass for defective items. High-frequency pneumatic spray valves (512 air nozzles) discharge focused micro-air blasts, ensuring accurate defect removal with a carryover ratio of ≥ 20:1 (Bad to Good).

4. Human-Machine Interface (HMI) & Control System

Operating on an updated industrial control software stack, the CS-LA1200D features a 15-inch industrial-grade touchscreen. The intuitive visual interface allows operators to adjust sensitivity thresholds, fine-tune color spectrum parameters, switch material presets (e.g., from soybeans to coffee beans), and monitor real-time sorting analytics.

4. Technical Specifications Matrix

5. Economic ROI & Operational Advantages for Plant Managers

1. Space Savings (5.6 m^2 Footprint): By stacking two crawler stages vertically within a single 2810 × 2000 mm frame, processing plants achieve double-pass sorting performance without doubling their floor area requirements. 2. Reduced Material Damage: Lowering product breakage rates by even 1.5–3% in high-value nut or coffee processing directly improves profitability and product grade realization. 3. Optimized Energy Consumption: Rated at 9 kW/h, the CS-LA1200D delivers energy efficiency relative to its processing throughput (8–12 T/H on coarse materials). 4. Pneumatic Precision: With 512 independent air holes matching the 16-camera array, air pulse durations are tightly controlled. This reduces overall compressed air consumption (≥ 8 m^3/min) while maintaining a ≥ 20:1 carryover ratio.

6. Conclusion

The JIACUI CS-LA1200D Double-Deck Crawler Color Sorter offers a practical solution for agricultural exporters and industrial material processors across South America. By combining gentle belt conveyance, a 1200mm track width, 16 optical cameras, and double-deck re-sorting capabilities, the CS-LA1200D achieves high sorting accuracy (≥ 99%) while protecting material integrity. Whether processing specialty coffee in Colombia, Brazil nuts in Bolivia, or grains in Argentina, the CS-LA1200D provides a reliable method to upgrade product grades and streamline processing operations.
