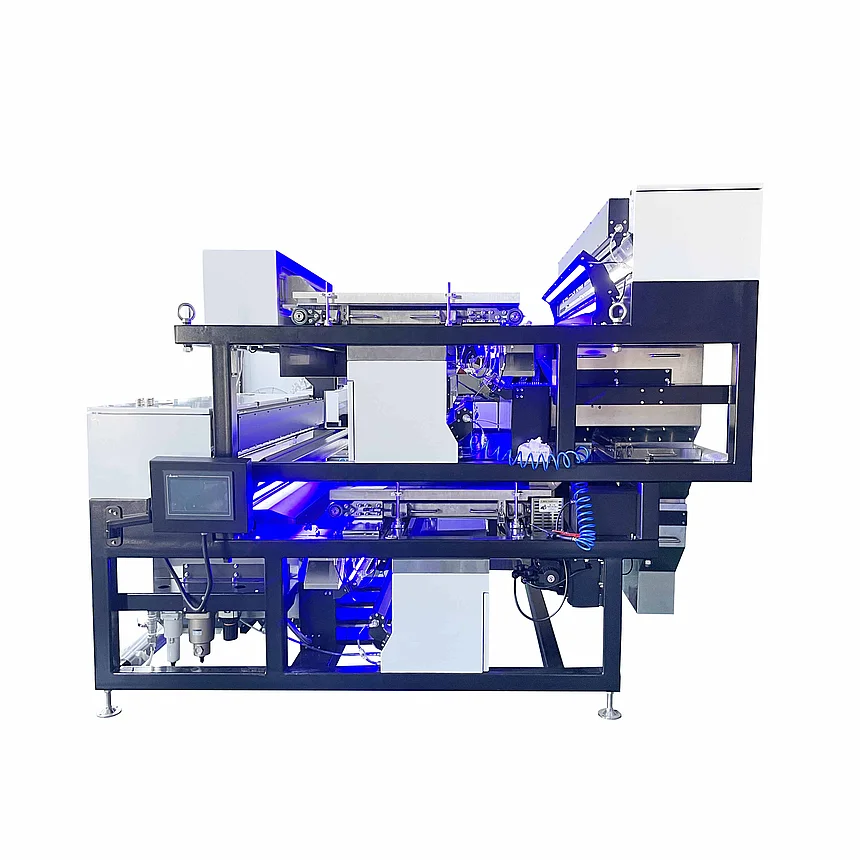

Engineered for Brazil's Agricultural & Mining Powerhouse: Technical Deep-Dive into the JIACUI CS-LA1200D Double-Deck Crawler Color Sorter

1. Executive Summary: Meeting Brazil’s Massive Agribusiness & Mining Scale

Brazil is an international agro-industrial powerhouse. As the world’s leading producer and exporter of Soybeans, Commercial & Specialty Coffee (Arabica and Fine Canephora/Conilon), Sugar & Dry Beans, Cashews & Brazil Nuts, and major industrial minerals such as Quartz, Crystal, and Salt, Brazilian processing facilities (fábricas, cerealistas, e usinas) operate on an immense scale. However, high processing volumes often introduce significant quality control challenges:

• High Throughput Demands: Processing lines require massive hourly capacities (5–12 T/H) without compromising sorting precision.
• Fragile & Heavy Commodity Degradation: Traditional chute-type optical sorters rely on steep drop angles. For heavy minerals, large-grain soybeans, or fragile shelled nuts and coffee, chute impact leads to high material breakage, kernel cracking, and equipment wear.
• Complex Defect Streams: Raw feeds contain a mix of color defects, toxic weed seeds (e.g., Crotalaria in soybeans), insect-damaged kernels, soil clods, and mineral impurities.

To meet the demands of Brazilian processing facilities, JIACUI presents the CS-LA1200D Crawler-Type Double-Deck Color Sorter. Featuring a dual-layer horizontal belt conveyor system (1200mm track width per deck), anti-crushing dynamics, 16 high-resolution optical cameras, and a 15-inch industrial control screen, the CS-LA1200D delivers ≥ 99% sorting accuracy, a ≥ 20:1 carryover ratio, and simultaneous 3-grade material separation in a single pass.

2. Specialized Material Applications across Brazil’s Key Sectors

Unlike gravity-fed chute sorters where commodities bounce and roll down sloped metal chutes, a crawler (belt-type) sorter carries materials smoothly on a horizontal track. This design addresses the specific processing requirements across Brazil's agricultural and mining heartlands:

               [ Raw Harvest / Bulk Feed ]
                         │
                         ▼
     ┌──────────────────────────────────────┐
     │      Upper Deck Crawler Belt         │ ──► [ Primary Optical Scanning (16 Cameras) ]
     └──────────────────────────────────────┘
       │                                  │
       ▼                                  ▼
[ Grade 1: Export Grade A ]    [ Secondary / Rejected Stream ]
                                          │
                                          ▼
                       ┌──────────────────────────────────────┐
                       │       Lower Deck Crawler Belt        │ ──► [ Secondary Re-Sorting ]
                       └──────────────────────────────────────┘
                         │                                  │
                         ▼                                  ▼
                [ Grade 2: Grade B ]               [ Grade 3: Discards ]

A. Commercial & Specialty Coffee (Minas Gerais, Espírito Santo, São Paulo)

• The Target Materials: High-volume Commercial Arabica, Fine Natural Coffee, and Conilon (Robusta).
• The Challenge: High-speed chute sorters cause green coffee beans to bounce, leading to misdirected air blasts and chipped beans. In Conilon and natural-processed Arabica, identifying sour beans (grano negro/vinagrillo), insect-damaged beans (Broca-do-café), and dried cherries (boia) requires stable material presentation.
• The CS-LA1200D Solution: The horizontal crawler belt keeps beans completely stationary during 16-camera optical scanning. The double-deck mechanism isolates Export Grade (Grade A), Domestic Commercial (Grade B), and Defects/Stones (Grade C) simultaneously, optimizing overall yield.

B. Soybeans & Pulses (Mato Grosso, Paraná, Goiás, MATOPIBA)

• The Target Materials: Export-grade Soybeans (Soja), Black Beans (Feijão Preto), and Edible Pulses.
• The Challenge: Bulk soybean processing requires immense hourly throughput (8–12 T/H). Raw soybean lots are often contaminated with purple stain, green unripened seeds, mud balls, and toxic weed seeds (Crotalaria). High-velocity chute drops can split delicate seed coats (testa).
• The CS-LA1200D Solution: The wide 1200mm belt platform easily handles heavy bulk feeds. The gentle belt delivery prevents seed coat cracking, while 512 high-frequency air nozzles isolate discolored seeds, weed seeds, and soil clods with high precision.

C. Nuts & Seeds: Cashews, Brazil Nuts, & Sunflower Seeds (Ceará, Piauí, Pará)

• The Target Materials: Shelled Cashews (Castanha-de-caju) and Brazil Nuts (Castanha-do-Pará).
• The Challenge: Shelled cashews and Brazil nuts are oil-rich, irregularly shaped, and prone to splitting. Friction inside traditional chutes causes oil buildup that attracts dust and requires frequent cleaning stops.
• The CS-LA1200D Solution: Flat conveyor belts eliminate sliding friction, preventing oil residue accumulation. The anti-crushing belt dynamics preserve whole-kernel integrity, maximizing the percentage of high-value whole nuts for international export.

D. Industrial Minerals & Quartz (Minas Gerais, Bahia)

• The Target Materials: Quartz Granules, Silica Sand, Rock Salt, and Recycled Plastics (PET Flakes).
• The Challenge: Dense mineral rocks destroy or rapidly wear down traditional chute surfaces. Gravity chutes also cause heavy mineral rocks to tumble unpredictably, leading to false ejection.
• The CS-LA1200D Solution: Heavy-duty vulcanized crawler tracks comfortably transport heavy, abrasive mineral streams past the camera sensors, enabling accurate sorting by color shade, transparency, and impurity type.

3. Core Technical Innovations & Engineering Features

1. Dual-Deck Architecture for Simultaneous 3-Grade Sorting

In standard single-deck sorting, processors must compromise between yield and purity. The CS-LA1200D resolves this through its double-deck configuration:

• Top Deck: Conducts primary high-capacity sorting on raw incoming feed.
• Bottom Deck: Automatically captures the rejected or intermediate stream from the upper layer for immediate secondary re-sorting.
• Operational Result: Simultaneous separation into three clean fractions—Premium Export, Secondary Commercial Grade, and Final Rejects/Foreign Objects—without requiring extra bucket elevators or secondary machine units.

2. High-Speed Belt Conveyance & Anti-Crushing Design

By replacing sloped metal chutes with two high-speed crawler tracks (120 cm × 2), materials travel at a steady, controlled speed past the visual scanning area. Cushioning at material transfer points reduces mechanical shock, minimizing breakage rates for fragile commodities like whole cashews, beans, and high-grade coffee.

3. Advanced 16-Camera Array & Targeted Air Ejection

• 16 High-Speed Industrial Cameras: Provide complete optical coverage across the 1200mm belt width, detecting minute color variations, insect damage, mold, and foreign debris.
• Targeted Ejection System (512 Air Nozzles): A fast-acting pneumatic manifold delivers focused micro-air blasts directly to defective targets, maintaining a carryover ratio of ≥ 20:1 (Bad to Good).

4. Industrial Control Interface (HMI)

Equipped with a 15-inch industrial touch screen, the control interface features pre-configured operating recipes for major Brazilian commodities (Soybeans, Coffee, Cashews, Minerals). Plant operators can quickly switch product presets, adjust defect sensitivity, and monitor real-time sorting analytics.

4. Technical Specifications Matrix

5. Economic ROI & Operational Value for Brazilian Processing Facilities

1. Footprint Optimization (5.6 m^2 Footprint): By integrating primary and secondary sorting into a single 2810 × 2000 mm unit, facilities double their sorting capability without expanding their building footprint or adding extra material handling conveyors. 2. Reduced Material Damage: Lowering kernel splitting in soy, cashew, and specialty coffee preserves full premium pricing for export shipments. 3. Power Efficiency (9 kW/h Power Draw): Energy-efficient drives maintain high throughput (8–12 T/H) while managing operational energy costs. 4. Air System Efficiency: With 512 fast-acting ejector valves synchronized to 16 optical cameras, air pulse duration is tightly controlled, reducing compressor load (≥ 8 m^3/min) while maintaining a ≥ 20:1 carryover ratio.

6. Conclusion

The JIACUI CS-LA1200D Double-Deck Crawler Color Sorter offers a practical solution for Brazil's agricultural and mining processing sectors. By combining gentle belt transportation, a wide 1200mm track, 16 optical cameras, and double-deck re-sorting capabilities, the CS-LA1200D achieves ≥ 99% sorting purity without damaging valuable commodities. Whether processing soybeans in Mato Grosso, coffee in Minas Gerais, cashews in Ceará, or minerals in Bahia, the CS-LA1200D delivers a reliable, high-throughput solution for industrial processing operations.
