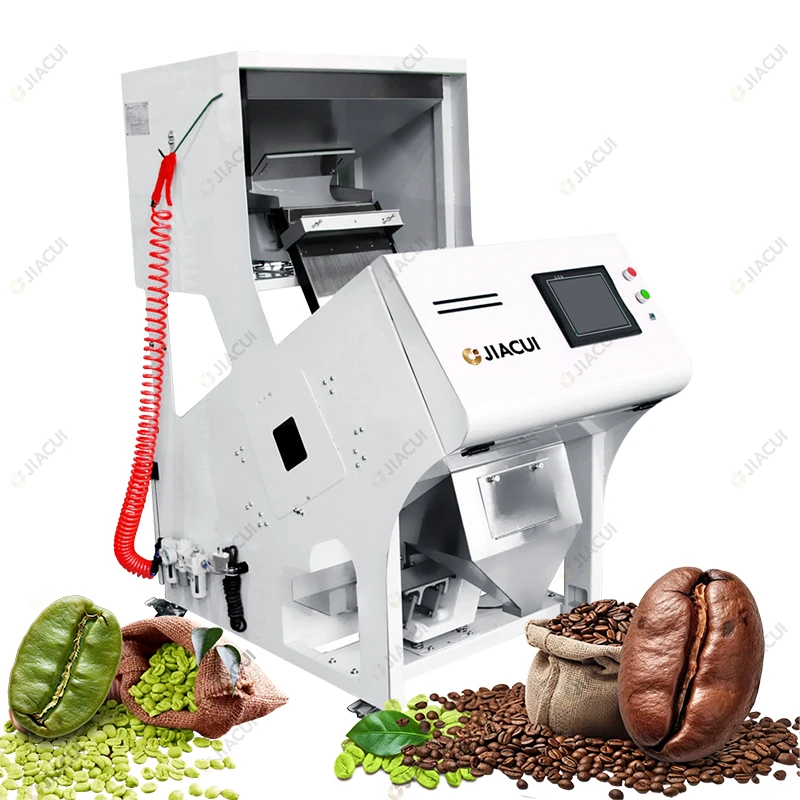

Coffee color sorter CS-1A64

Name: Coffee color sorter CS-1A64
Brand: JiaCui
Price: 5000 USD
Availability: InStock
Rating: 5 (11 reviews)

High-Precision Optical Color Sorter for Coffee Bean Processing

Ultra-High Precision (≥99.99%) with high-resolution sensors for accurate defect and color sorting.

High Carryover Ratio (>30:1) minimizing good bean loss and improving overall yield.

Compact & Customizable Design with flexible power options and a processing capacity of 0.8–1.5 T/H.

Model:

CS-1A64

Product Overview

CS-1A64 Coffee Color Sorter is a precision high intelligent optical sorter that is dedicated for coffee bean processing industry. Using high-speed camera sensors, combined with high performance image-processing technology, it can detect very subtle color difference and eliminates ones raised by insect damage, skins, foreign materials (such as stones, sticks, metals) and others from coffee beans.
Receive phenomenal coffee bean and green bean cleaning results almost instantly, whether you’re cleaning green or roasted coffee beans with the CS-1A64 — an indispensable resource for coffee exporters, roasters, and processors with a mission to deliver the highest standards of quality.

Product Parameters

Model	Power(Kw)	Power Supply	*Dimension LWH (mm)*	Weight (Kg)	Capacity (T/H)	Accuracy (%)	Carryover Ratio
CS-1A64	1	customizable	80012601550	157	0.8-1.5	≥99.99	＞30:1

Note: Processing capacity is based on standard white rice as the industry standard. Throughput can be different for different materials, particle size and impurity rate. Contact us for a free sample test to know the exact numbers for your material.

Core Advantages

High Sorting Accuracy

Up to 99.9% sorting accuracy, ensuring the highest product quality and consistency

Efficient Processing

High-speed sorting with a large capacity, significantly improving production efficiency

Advanced Technology

AI-powered sorting algorithm with RGB spectrum technology for precise identification

Easy to Operate

Intuitive control panel with wireless remote service support for convenient operation

Durable & Reliable

High-quality materials and components for long-term stable operation

Excellent After-sales

24/7 technical support and comprehensive maintenance services

How Our Color Sorter Works

Our color sorter uses advanced optical technology and intelligent algorithms to accurately identify and separate different materials based on their color, shape, and texture. The entire process consists of several key stages, ensuring precise and efficient sorting.

Color Sorter Working Principle Diagram - showing the complete sorting process from feeding to collection

Material Feeding

Raw materials are evenly fed into the sorter through a vibratory feeder or conveyor belt, ensuring a steady flow of material for sorting.

Optical Scanning

As materials pass through the sorting chamber, high-resolution cameras capture images from multiple angles, while LED light sources provide uniform illumination.

Image Processing

The captured images are processed in real-time by our AI-powered algorithm, which analyzes color, shape, and texture to identify defects and impurities.

Precise Ejection

Based on the analysis results, high-speed solenoid valves actuate to precisely eject defective products or impurities, separating them from the good material.

Product Collection

Sorted materials are collected in separate containers: one for high-quality products and another for rejected materials.

Advanced Sorting Technologies

Our color sorter combines several advanced technologies to achieve exceptional sorting performance:

RGB Spectrum Technology: Captures over 16 million color variations for precise color identification
AI-Powered Algorithm: Continuously learns and optimizes sorting parameters for better performance
High-Speed Cameras: 5400-pixel industrial cameras for detailed image capture
High-Frequency Solenoid Valves: Response time less than 2 milliseconds for precise ejection

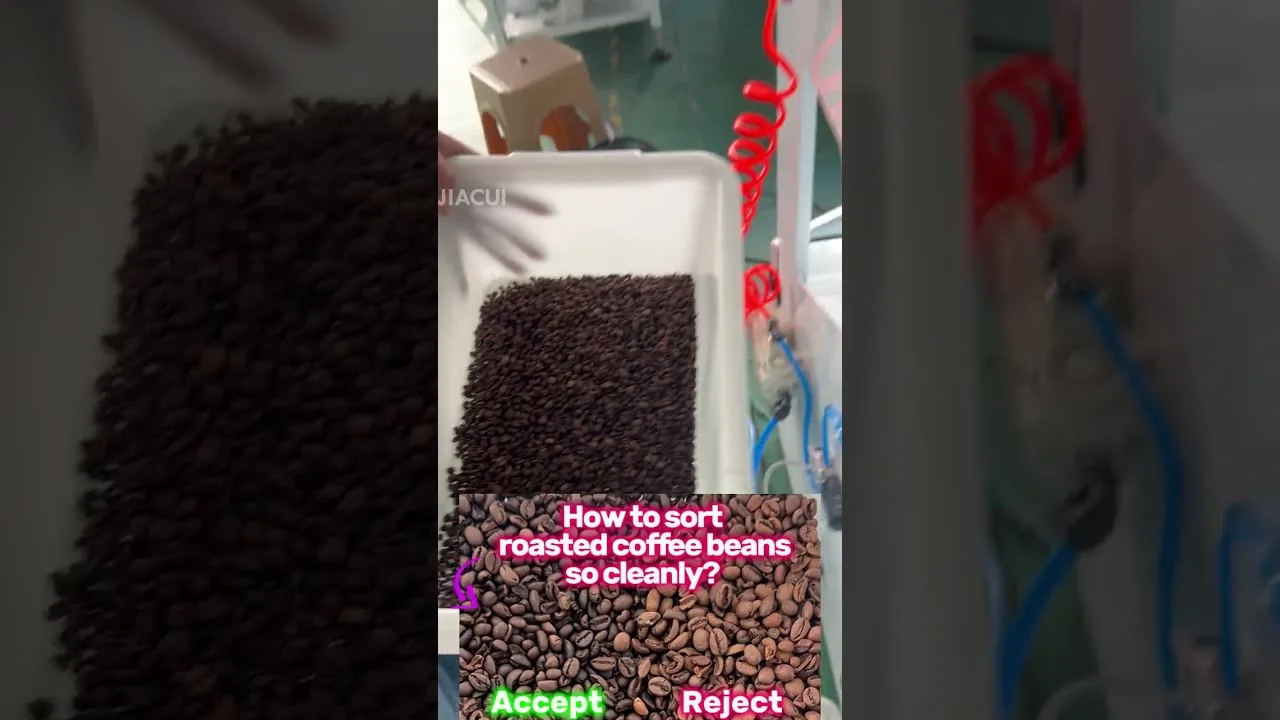

Working Principle Video

Watch how our color sorter performs efficient and precise sorting work

This video shows the working process of our chute color sorter in actual production environments. From material entry, optical recognition to precise sorting, it comprehensively demonstrates the high efficiency and accuracy of the equipment.

Sorting Effect Display

Visually witness the excellent sorting effect of our color sorter

Precise Sorting, Enhancing Quality

Our color sorter can accurately identify and remove impurities and defective products from materials, with sorting accuracy up to 99.9%. The left side shows the material before sorting, containing various impurities and defective products; the right side shows the material after sorting, with impurities completely removed and product quality significantly improved.

Improve Product Quality, Reduce Production Costs

Contact our expert team now to get exclusive solutions and preferential quotes

Free Consultation

Wide Application Range

Our color sorter is widely used in various industries, including agriculture, food processing, recycling, mining, and more. It can handle a wide range of materials, from grains and nuts to plastics and ores.

Agriculture: Rice, wheat, corn, soybean, peanuts, etc.
Food Processing: Coffee beans, tea, nuts, fruits, etc.
Recycling: Plastic, glass, metal, paper, etc.
Mining: Ores, minerals, gemstones, etc.
Pharmaceutical: Medicinal herbs, pills, capsules, etc.

Customize Your Solution

Color Sorter Core Technologies

Discover our cutting-edge color sorter technologies that deliver unmatched sorting performance, accuracy, and efficiency. Backed by decades of research and development, our innovative solutions help businesses achieve higher product quality and maximize profits.

Smart Wireless Control

Global remote service support for real-time monitoring and parameter adjustment, ensuring your color sorter operates at peak performance 24/7.

Advanced Camera Technology

Industrial-grade 5400-pixel camera with Japanese CCD chip, capturing even the most subtle color differences for precise sorting results.

High-Brightness LED Lighting

State-of-the-art LED optical technology with imported components, delivering stable, uniform illumination for consistent sorting performance.

AI-Powered Sorting Technology

Advanced AI deep learning algorithm that continuously optimizes sorting performance, adapting to different materials and conditions.

Advanced RGB Spectrum Technology

Over 16 million color variations with real-time background adjustment, enhancing sorting precision for complex materials.

High-Frequency Solenoid Valves

1 billion cycle high-quality imported solenoid valves with ultra-fast response time for precise removal of defective products.

Color Sorter Technical Advantages

With over 15 years of color sorter R&D experience, our innovative solutions continue to lead the industry, helping businesses achieve superior sorting results and maximize profits.

Innovative Color Sorter Technologies

Multispectral Recognition Technology: Captures visible and near-infrared spectra, identifying subtle color and texture differences invisible to the human eye, ensuring unparalleled sorting accuracy.
High-Speed Solenoid Valve System: Ultra-fast response time under 2 milliseconds, enabling precise removal of defective products at high processing speeds.
AI Deep Learning Algorithm: Advanced image recognition that continuously learns and optimizes sorting performance, adapting to different materials and production environments.
Modular Design Architecture: Easy maintenance and upgrades, extending equipment lifespan and reducing operational costs over time.

As an industry leader, we've helped establish multiple color sorter industry standards and hold over 20 patents. Our professional sorting solutions have been trusted by businesses in over 50 countries worldwide.

Premium Color Sorter Accessories

We offer a complete range of high-quality accessories to ensure your color sorter operates at peak performance for years to come, maximizing your return on investment.

High-Precision Optical Sensor

The accuracy can reach 0.14mm, enabling precise identification of mold and worm-eaten.

High-Speed Solenoid Valve

Fast response, precise removal of defective products, improving sorting efficiency.

Intelligent Control Panel

Intuitive operation interface, real-time monitoring of equipment status, facilitating parameter adjustment.

Wear-Resistant Chute Channel

Made of high-strength wear-resistant materials, extending service life and reducing maintenance costs.

Energy-Saving LED Light Source

Provides stable and uniform lighting, reducing energy consumption and improving recognition accuracy.

Air Filter System

Keeps the equipment interior clean, preventing dust from affecting optical system performance.

World-Class Color Sorter Manufacturing Facility

State-of-the-art production equipment and rigorous quality control processes ensure every color sorter meets our highest standards of performance and reliability.

Precision Manufacturing for Superior Color Sorters

Our modern manufacturing facility combines cutting-edge technology with rigorous quality control to produce the most reliable color sorters on the market. From raw material inspection to final product testing, every step of our production process is designed to ensure exceptional performance and durability.

Spacious Production Facility: 10,000+ square meters of modern manufacturing space equipped with advanced production lines
Automated Manufacturing: State-of-the-art automated production equipment ensuring consistent quality and high efficiency
Strict Quality Control: ISO 9001 certified quality management system with comprehensive testing protocols
Expert Team: Professional R&D and production team with 20+ years of color sorter industry experience
